Part Story

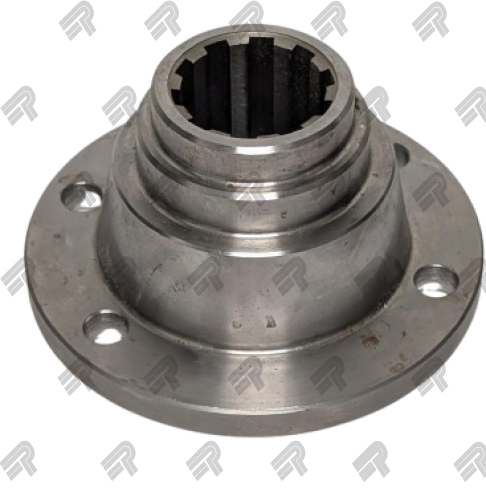

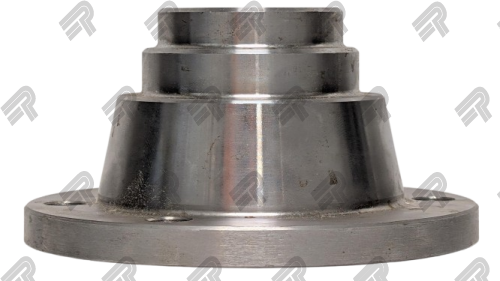

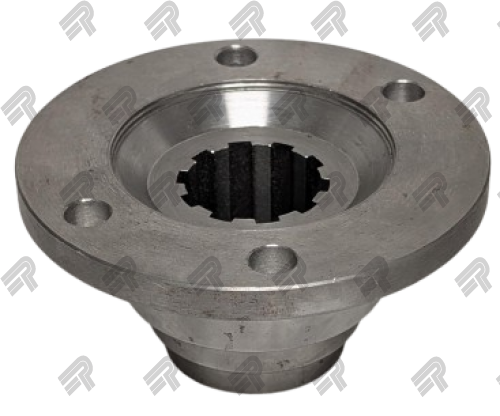

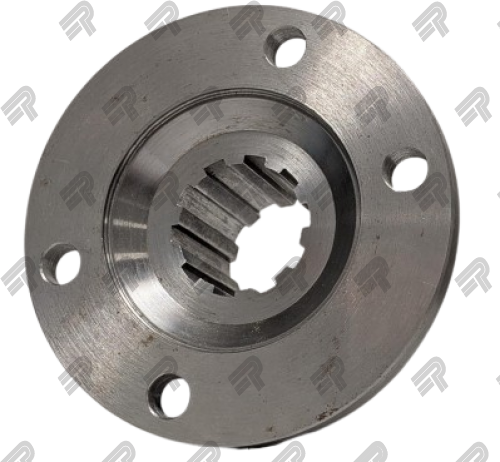

Dsp Companion Flanges

Part Number 4801-101

  • Spline Count: 10
  • Spline Diameter: 1.750
  • Hub Diameter: 2.148
  • Thru Hole: 2.728
  • Pilot Diameter: 3.150
  • Bolt Circle Diameter: 4.343
  • Bolt Holes: .480
  • Face To End: 2.717
  • Notes: Isuzu / Mates with 4802-1244
  • Vehicle Class: HD
  • Brand: PTI
