Part Story

Dsp Companion Flanges

Part Number 40208236

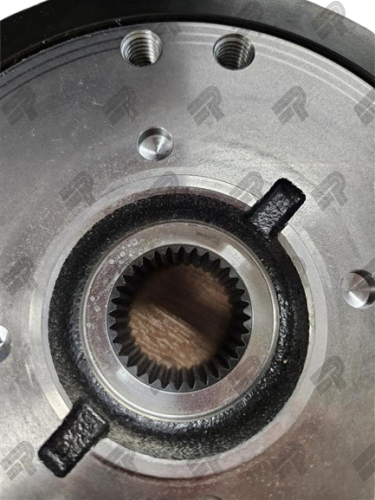

  • Spline Count: 32
  • Spline Diameter: 1.686
  • Hub Diameter: 2.608
  • Thru Hole: 1.608
  • Pilot Diameter: 2.954
  • Bolt Circle Diameter: 6.245
  • Bolt Holes: M12-1.75
  • Face To End: 2.212
  • Notes: 8 bolts, M12-1.75 thread, GM 2500/3500 Diffs, 5502-295
  • Vehicle Class: LD
  • Brand: AAM
Part Story

For GM trucks with 8 bolts on the rear flange.
