Part Story

Dsp Ujoints

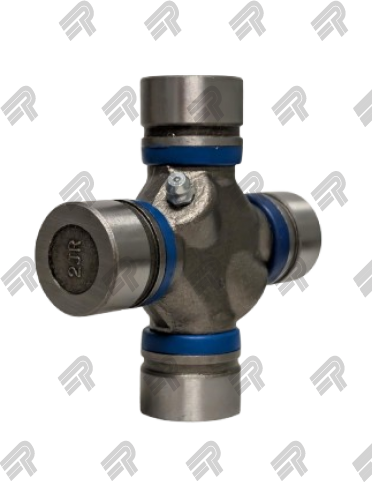

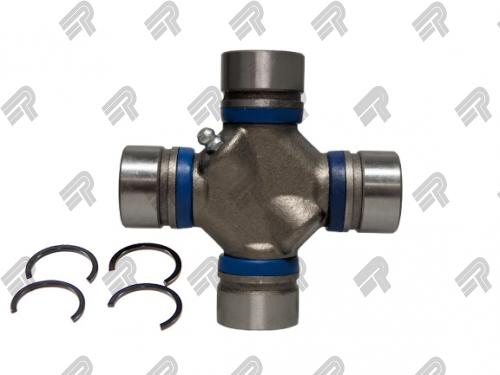

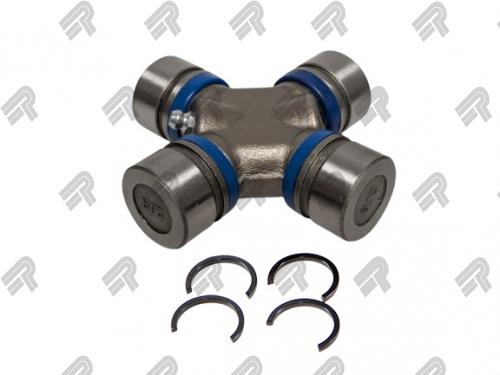

Part Number 3R51-31

  • Series: 3R
  • Style: ISR
  • Cap 1 Diameter: 1.125
  • Stack 1: 2.556
  • Lube: N
  • Oem Manufacturer: SAGINAW
  • Oem Series: 3R
  • Notes: 3R Saginaw with recess center in cross
  • Vehicle Class: LD
  • Brand: PTI
Part Story

This special 3R universal joint has a recessed body which allows installation in the old Buick/Cadillac CV's.

The older CV's have a cap which needs to be installed after the universal joint is installed in the CV (that is why the 3R51-31 needs the recess). The standard 3R joint (without the recess) cannot be installed in these special CV units.
