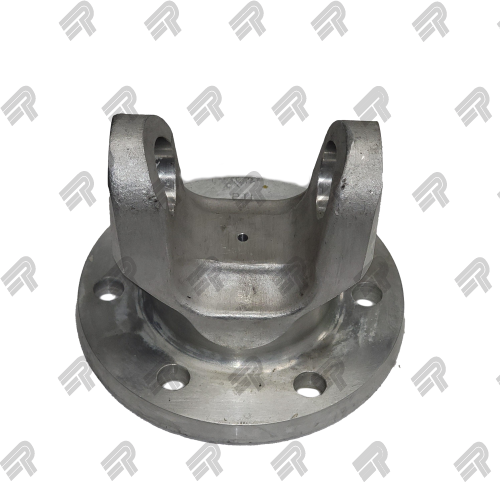

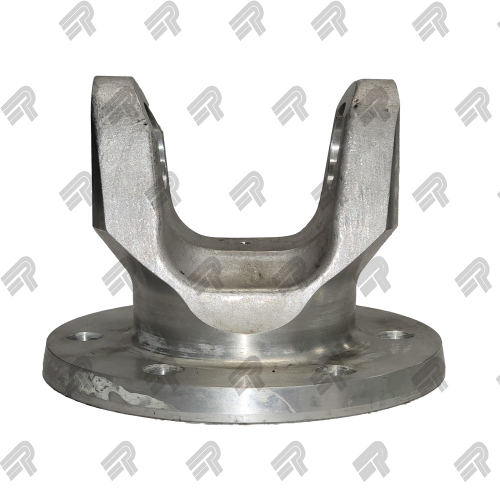

Dsp Flange Yokes
Part Number 3502-0166
- Series: 1350
- Pilot Type: F
- Pilot Diameter: 0.630
- Bolt Circle Diameter: 4.134
- Bolt Hole Count: 6
- Bolt Hole Diameter: 0.559
- Centerline To Face: 3.000
- Swing Diameter: 5.450
- Notes: Aluminum 6061-T6 Tri Flange, 105mm (4.134) and 110mm (4.331) bolt circle spacing, 14mm bolt holes, 16mm nose hole, Hole to hole: 105mm BC = 3.580", 110mm BC = 3.750"
- Vehicle Class: LD
- Brand: PTI
