Part Story

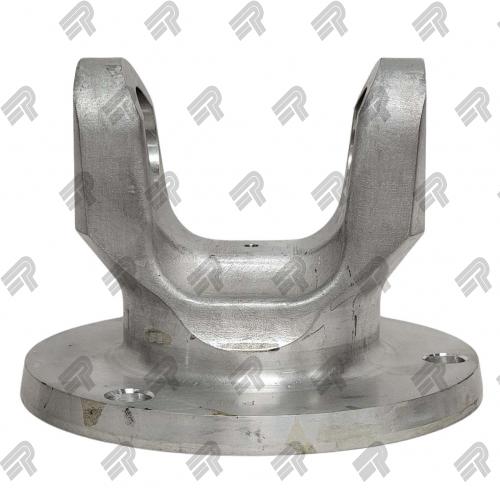

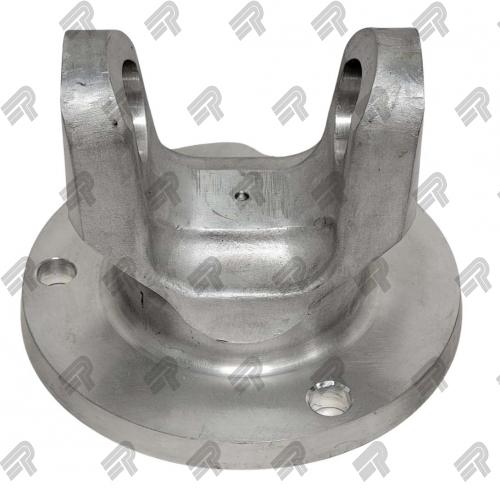

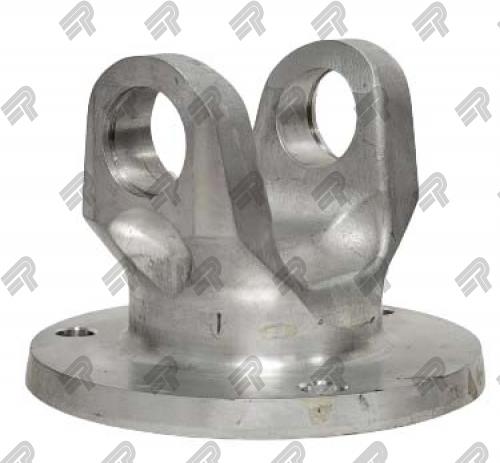

Dsp Flange Yokes
Part Number 3502-0163
- Series: 1350
- Pilot Type: F
- Pilot Diameter: 0.630
- Bolt Circle Diameter: 3.937
- Bolt Hole Count: 3
- Bolt Hole Diameter: 0.480
- Centerline To Face: 3.000
- Swing Diameter: 5.450
- Notes: Aluminum 6061-T6 Tri Flange, 100mm (3.937) bolt circle, Hole to hole 3.409", 16mm nose hole, 12mm bolt holes
- Vehicle Class: LD
- Brand: PTI
