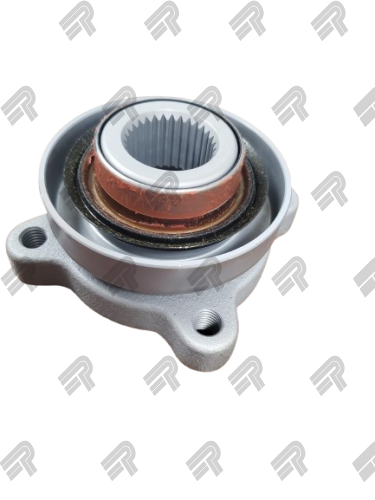

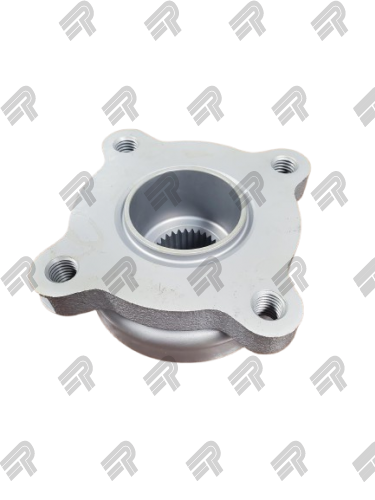

Dsp Companion Flanges
Part Number 3501-3001
- Spline Count: 30
- Spline Diameter: 1.306
- Hub Diameter: 1.929
- Thru Hole: 1.151
- Pilot Diameter: 2.000
- Bolt Circle Diameter: 4.250
- Bolt Holes: M12-1.75
- Face To End: 2.362
- Notes: Chrysler Ram 2014 - 2018, 9.25" Beam - Front Axle, 30 spline, Assembly with Deflector
- Vehicle Class: LD
- Brand: PTI
