Part Story

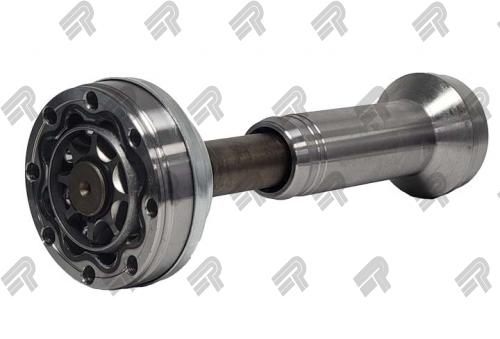

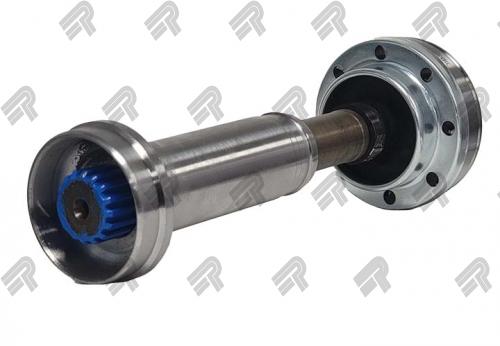

Dsp Splined Sleeves

Part Number 3183-1602

  • Series: CVJ
  • Material: Steel
  • Spline Count: 16
  • Spline Diameter: 1.375
  • Tube Diameter: 3.000
  • Tube Wall: 0.083
  • Butt Diameter: 2.844
  • End To Weld: 12.5
  • Use With: 3190-3035
  • Notes: For JK Jeep rear shaft with 100mm 8 bolt CVJ
  • Vehicle Class: LD
  • Brand: PTI
Part Story

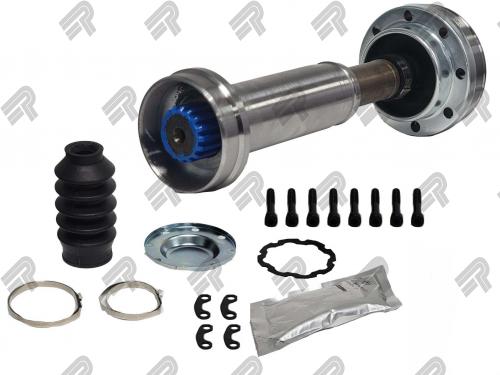

JK Jeep Wrangler rear shaft in 3-083 tubing. Used with 3190-3035 CVJ kit to replicate an "OE" style double CVJ shaft. Shaft could be upgraded to u-joints using 3501-322 rear companion flange on the t-case that mates to double cardans (3590-2025). We do have a 1310 flange conversion (3102-409X) and 1350 flange conversion (3502-409X) available for u-joint shafts.
