Part Story

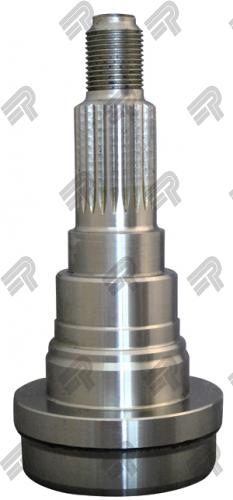

Dsp Splined Stub Shafts

Part Number 1353-231

  • Tube Diameter: 2.560
  • Tube Wall: 0.065
  • Butt Diameter: 2.435
  • Spline Count: 23
  • Spline Diameter: 0.990
  • Spline Length: 1.375
  • End To Weld: 5.000
  • Style: Fixed
  • Use With: 1301-231
  • Midship: Yes
  • Bearing Diameter: 1.181
  • Notes: Fits Toyota OE Tube 65mm / 1374-233 nut included
  • Vehicle Class: LD
  • Brand: PTI
Part Story

This Toyota spline stub can be used with the 1301-231 companion flange.
