Part Story

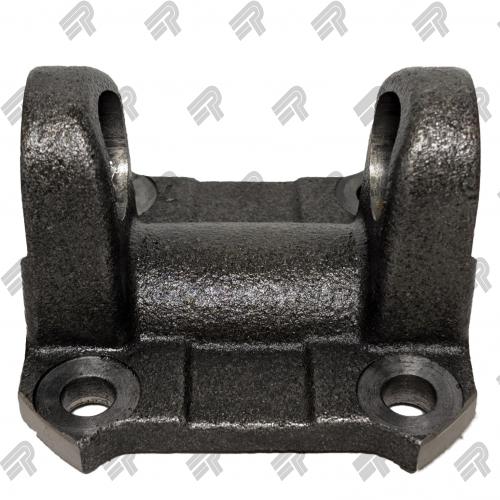

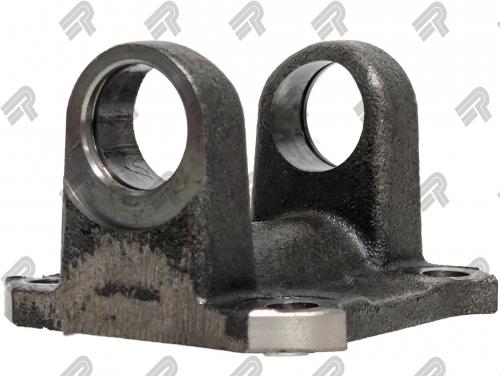

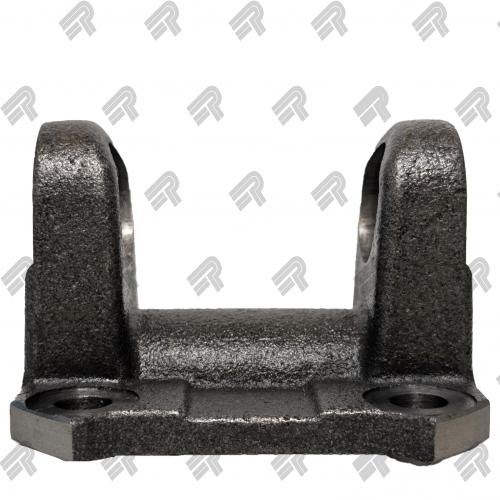

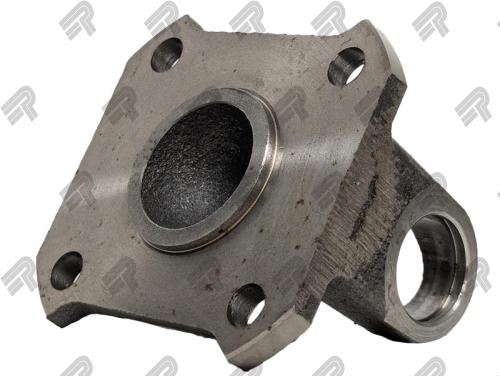

Dsp Flange Yokes
Part Number 3102-185
- Series: 1310
- Pilot Type: M
- Pilot Diameter: 1.811
- Bolt Circle Diameter: 3.661
- Bolt Hole Count: 4
- Bolt Hole Diameter: 0.445
- Centerline To Face: 1.634
- Swing Diameter: 4.330
- Notes: Square Bolt Pattern / Fits Toyota applicatons
- Vehicle Class: LD
- Brand: PTI
Part Story
This 1310 Toyota flange has the same pattern as the 1302-37 and the 3302-185.
This flange fits the Toyota Tacoma's transfer case output from 1995-2004. It fits the transmission on some Tacoma Pre-Runners and two wheel drive trucks from 1998-2004.
