Part Story
Dsp End Yokes
Part Number 1204-261
- Series: 1251
- Spline Count: 24/26
- Spline Diameter: 1.115
- Hub Diameter: 1.445
- Thru Hole: 1.300
- Centerline To End: 3.312
- Style: ISR
- Notes: Used on 2 piece Subaru shafts to replace the center CVJ, 1.73" inside ear to ear
- Vehicle Class: LD
- Brand: PTI
Part Story

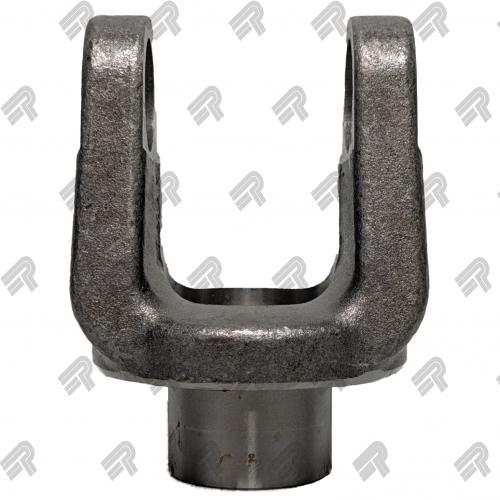

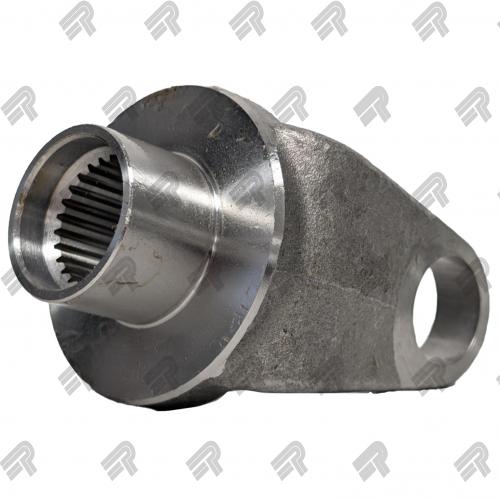

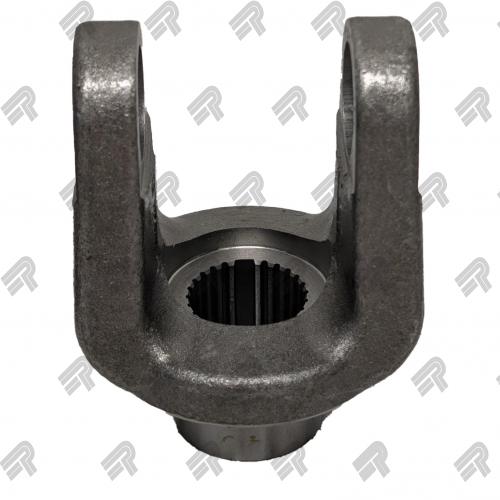

This Subaru end yoke is made in the 1251-22 universal joint series and is used to replace the factory CV center section on two piece shafts.
This is a full round style yoke.

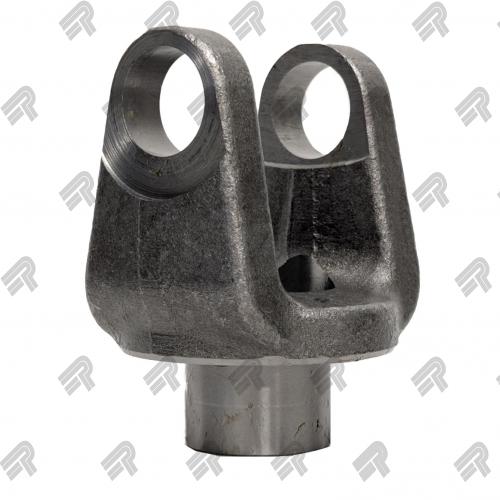

The last two photos show the older style which was made using a 1203-24.
